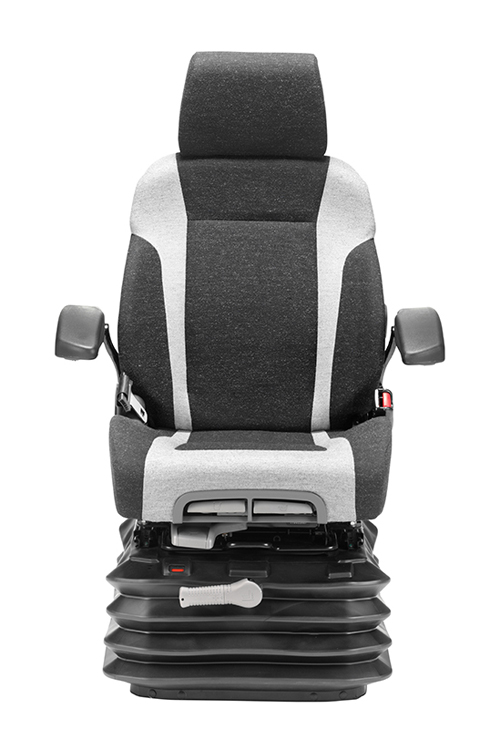

The 61/K1 is a mid back mechanical suspension seat from the New 600 series range.
Wide platform for improved stability and reduced free play in heavy duty applications
Features
Low natural frequency mechanical suspension
160mm vertical suspension stroke
Manual adjustment for driver weight,with extended weight range for operators of 50 – 175kg
60mm integral seat height adjustment
Backrest angle adjustment
Fore and aft adjustment – 160mm
Suspension cover
5 position lumbar support
50mm seat cushion length adjustment
7 and a half degree seat tilt adjustment in 3 positions
Adjustable headrest
50mm Fore and Aft Isolator
Options
Comfort armrests
Cushion heaters – 12v or 24v
Seat belt to ISO 6683 & SAE J386 (15kN)
Meets 22.kN seat belt requirements without tethers
Range of high quality fabric or PVC
Achieves ISO 7096 seat performance for construction vehicles in categories EM1, EM3,EM4,EM5,EM6 and EM8
Constant Seat Index Point (SIP) through the use of a Positioning System Module (PSM)
For line drawing click on ‘Leaflets’and go to page 9.
